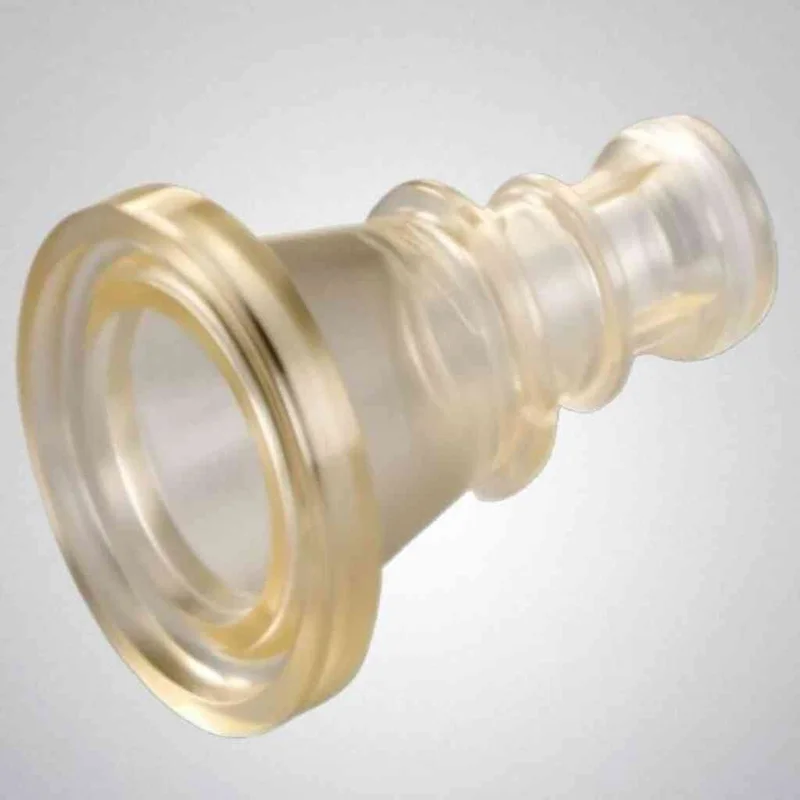

Colder Products (CPC) MPC44012T39M 3/4″ Sanitary Coupling Insert (Polysulfone)
The CPC MPC44012T39M is a high-performance sanitary coupling insert designed for secure, sterile fluid transfer in biopharmaceutical and laboratory applications. This insert features a 3/4″ Sanitary (Tri-Clamp) flange, providing a seamless transition between rigid process piping or single-use manifolds and the CPC MPC quick-connect series. Manufactured from medical-grade, white Polysulfone (PSU), this connector offers exceptional chemical resistance and mechanical durability. The MPC series is renowned for its “quick-click” locking mechanism, which ensures a leak-free connection and allows for one-handed operation. These inserts are an essential component for single-use systems (SUS), enabling the rapid and aseptic assembly of fluid paths in vaccine production, cell therapy, and media filtration workflows.
Technical Performance and Design
-
Medical-Grade Polysulfone (PSU): Offers superior thermal and chemical resistance compared to polypropylene, making it ideal for applications involving aggressive buffers or repeated sterilization cycles.
-
3/4″ Sanitary Flange: Provides a standardized Tri-Clamp connection point, allowing for easy integration with stainless steel equipment or other single-use sanitary components.
-
Ergonomic Quick-Connect: Designed for use with any MPC Series female body, the insert provides an audible “click” upon connection to verify a secure, leak-proof seal.
-
Large Flow Path: The optimized internal diameter minimizes pressure drop and shear stress, protecting sensitive biological products during transfer.
Product Specifications
-
Catalog Number: MPC44012T39M
-
Connection Type: 3/4″ Sanitary (Tri-Clamp) Flange
-
Coupling Type: Insert (Male)
-
Material: Polysulfone (PSU)
-
Color: White with Charcoal Thumb Latch compatibility.
-
Sterilization Compatibility: Autoclavable (up to 270°F/132°C), Gamma Irradiatable (up to 50 kGy), and EtO compatible.
-
Regulatory Compliance: USP Class VI; ADCF (Animal Derived Component Free).
Key Benefits & Applications
-
Single-Use Systems (SUS): A critical component for building sterile transfer sets, sampling manifolds, and bag assemblies.
-
Bioprocess Manufacturing: Ideal for connecting seed tanks to bioreactors or linking filtration units to storage carboys.
-
Aseptic Fluid Transfer: Reduces the risk of cross-contamination by providing a reliable, validated connection point that can be sterilized alongside the rest of the fluid path.
-
Operational Efficiency: Simplifies setup and teardown times in cleanroom environments by replacing traditional hose barbs and clamps with a standardized quick-connect interface.
