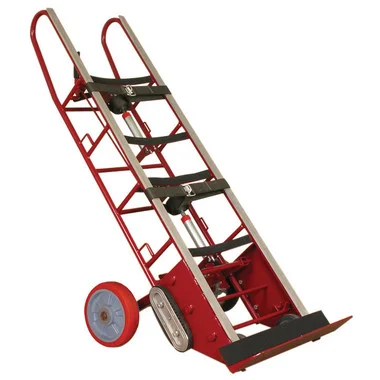

Heavy Duty Vending Truck, 2 webbed cargo belts, 27″W x 72″H x 17″D
- Wheel lock feature standard: Front wheels have wheel locks to allow truck to be placed in upright position without the danger of the truck rolling away from operator. Wheel lock is activated by a conveniently located lever at top of truck.
- In transport position load rests on (2) 10″ x 2 1/2″ polyurethane tread polypropylene hub wheels and (2) 5″ poly hub moldon rubber front wheels.
- Rear main wheel design allows truck to be tilted back to clear doorways. Especially useful with tall vending machines or other tall cargo.
- Available in 72″ and 78″ heights.
- 2 webbed cargo belts with eccentric tighteners for maximum load security.
- Constructed of heavy duty 1″ diameter steel tubing.
- Noseplate – 5″ D x 24″ W x 0.25″ thick.
- Tilt back at 49º angle.
| Model | HDSV-72 |
| Capacity | 1800 lb |
| Ratchet | Auto Rewind |
| Wheel Type: Front | Moldon Polyurethane on Polypropylene Hub Wheel |
| Belt | 2 piece with clasp |
| Width Noseplate | 24″ |
| Depth Noseplate | 5″ |
| Thickness Noseplate | 0.25″ |
| Tilt Back | 49 º |
| Steel Tube | 1″ |
| Overall Width | 27″ |
| Overall Height | 72″ |
| Overall Depth | 17″ |
| Weight | 126 lb |
Drawing for Heavy Duty Steel Vending & Appliance Trucks (230074)
