Description

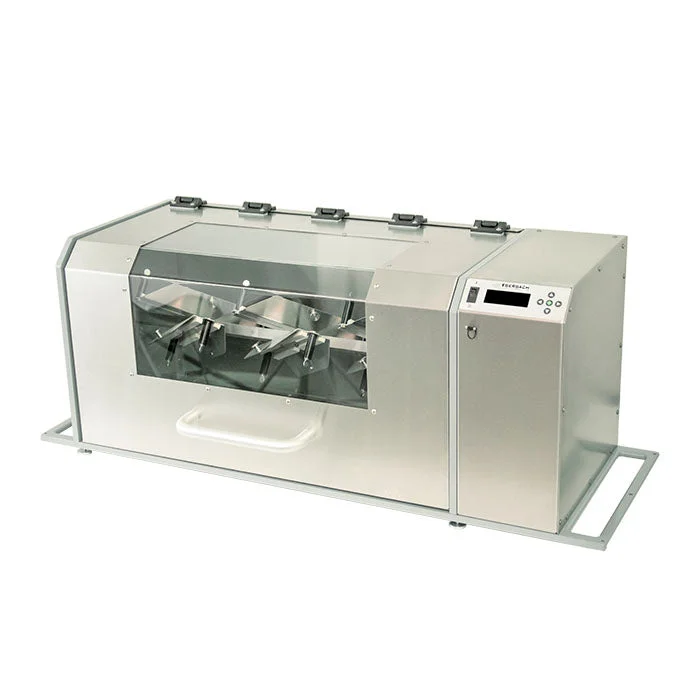

The EL660 Programmable Inversion Tumbler is designed to mix wet or dry samples, gently for suspensions, culturing, and dry blending or more aggressively by programing the tumbler to rotate clockwise stopping and then rotating counterclockwise. It is useful in keeping insoluble particles in suspension to minimize the introduction of air into the solution, dry blending powders as well as aggressively agitating chemicals. In addition, it can also be used in liquid/liquid extractions in situations where typical vigorous shaking is inappropriate (i.e. if you don’t want to introduce air into the solutions). The EL660 Programmable Inversion Tumbler can also be used to blend dry powders. The standard unit accepts 6 bottles or jars up to 9″ in height. When mixing uneven weights on each side of the rotating bar the machine can rotate up to 10 lbs. When mixing balanced weight on each side of the rotating bar, the machine can mix up to 50 lbs.
EL660 Replacement Parts
EL660 Use & Care Manual
Specifications
| Rotating Speed: | 0 – 100 rpm |
| Rotation Direction: | Forward and Reverse |
| Max Load Capacity: | Unbalanced: 10 lbs | Balanced: 50 lbs |
| Max Container Capacity: | 6 Jars/Bottles up to 9″ tall and 3.5″ in diameter – Custom Options available |
| Electrical: | 115 or 230V @ 50/60hz |
| Weight: | 143 lbs |
| Dimensions: | Length – 48 in | Width – 16.25 in | Height – 19 in |
