Description
Product Information

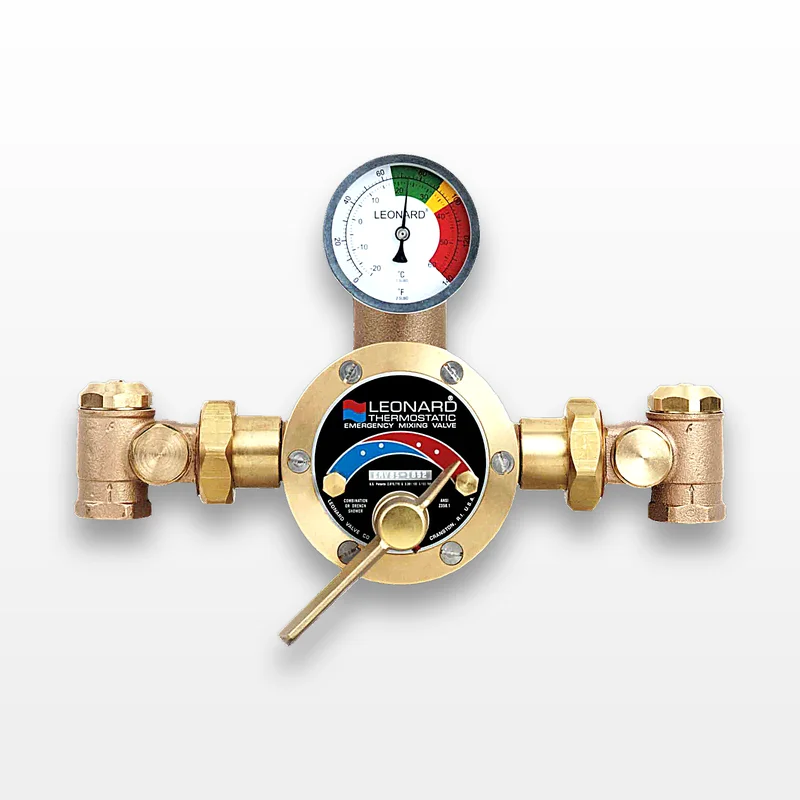

The Leonard LF Single Drench Shower Valve – TM-600-LF, sub-model 7310, is a highly responsive shower valve featuring the ECO-MIX™ DURA-trol® solid bimetal thermostat. This device efficiently manages hot and cold water intake, compensating for fluctuations in supply temperature and pressure. With its robust construction, it includes a locking type temperature regulator set for 85ºF (29ºC). Suitable for a recommended hot inlet temperature of 140°F, the thermostatic mixing valve has an adjustable high temperature limit stop set at 90ºF (32ºC). This valve is equipped with a cold water bypass capable of 20 GPM at 30 PSI, and it closes down upon the failure of cold water supply. Featuring a full 3/4” inlet and 1” outlet, wall support, and a rough bronze finish, it meets low lead requirements, making it ideal for consistent hot water applications.
Key Features
- ECO-MIX™ DURA-trol® solid bimetal thermostat
- Responsive to temperature fluctuations
- Locking type temperature regulator
- Cold water bypass at 20 GPM and 30 PSI
- 3/4” inlet and 1” outlet connections
- Rough bronze finish
- Low lead certified
Specifications
- Cold Water Bypass: 20 GPM
- Inlets: 3/4″
- Maximum Flow: 58 GPM
- Minimum Flow: 3 GPM
- Outlet: 1″
- Overall Depth: 9″
- Overall Width: 15″
- Recommended Hot Inlet Temperature: 140°F
- Adjustable High Temperature Limit Stop: 90ºF
- Includes dial thermometer (0 to 140ºF, -10 to 60ºC)
Weight
Imperial: 21.6 Pounds
Metric: 9.8 Kilograms
Shipping Dimensions
Imperial: 16.8 lb x 20.4 lb x 12.0 lb
Metric: 42.67 cm x 51.82 cm x 30.48 cm
Harmonized Code
848180
Harmonized Code Details
848180: Taps, cocks, valves and similar appliances. Chosen based on categorization as plumbing fixtures for showers.
