Pall Capsule Filter KleenPak SUPOR EKV Membrane 0.2 um

Description

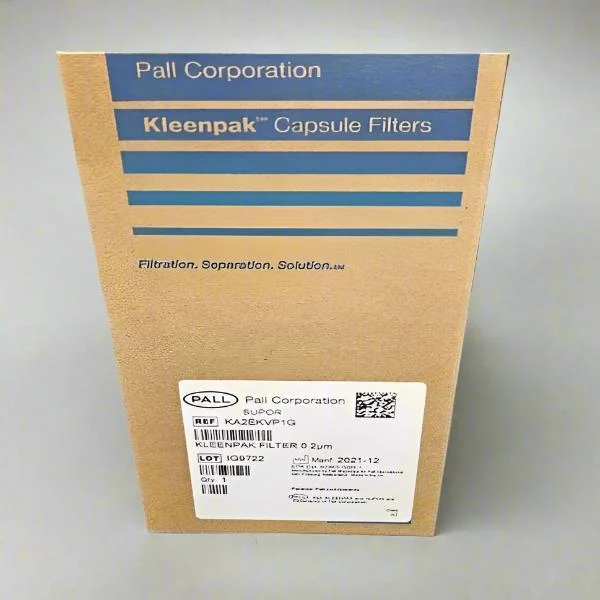

Pall KA2EKVP1G Kleenpak Capsule Filter – Supor EKV, 0.2 µm, Sanitary Flange

The Pall KA2EKVP1G is a highly efficient Kleenpak capsule filter engineered for the sterile filtration of biopharmaceutical fluids. Equipped with the industry-leading Supor EKV membrane, this capsule utilizes an asymmetric polyethersulfone (PES) construction with a built-in pre-filter layer to deliver exceptional flow rates and extended throughput. The “KA2” size offers a 750 cm² effective filtration area, making it ideal for processing intermediate batch volumes ranging from 3 liters to 120 liters. Outfitted with 1-1½ inch sanitary flange connections, this ready-to-use capsule seamlessly integrates into single-use manifolds and traditional stainless-steel piping, providing a reliable, sterilizing-grade barrier for buffers, cell culture media, and high-value active pharmaceutical ingredients.

Technical Performance and Design

• Asymmetric Membrane Technology: The Supor EKV membrane features a built-in asymmetric pre-filtration layer that tapers down to a 0.2 µm final rating. This prevents premature membrane fouling and dramatically increases total filter capacity.

• Ultra-Low Protein Binding: The hydrophilic PES membrane chemistry ensures minimal non-specific binding, maximizing the recovery of sensitive proteins, monoclonal antibodies (mAbs), and other vital biologicals.

• Sanitary Flange Connections: The P1 connection configuration features standard 1 to 1½ inch (25-38 mm) sanitary flanges (Tri-Clamp compatible) on both the inlet and outlet, ensuring secure, leak-free, and hygienic integration.

• Robust Single-Use Design: The compact Kleenpak housing eliminates the need for expensive filter housing cleaning and validation, reducing turnaround times and the risk of cross-contamination between batches.

Product Specifications

• Catalog Number: KA2EKVP1G

• Filter Line: Kleenpak Capsule

• Membrane Type: Supor EKV (Hydrophilic Polyethersulfone)

• Pore Size: 0.2 µm (Sterilizing Grade)

• Effective Filtration Area: 750 cm²

• Connections: 1 – 1½ in. Sanitary Flange (Inlet and Outlet)

• Sterilization: Pre-sterilized via Gamma Irradiation

Key Benefits & Applications

• Sterile Liquid Filtration: Fully validated for the complete retention of Brevundimonas diminuta, ensuring biological safety for critical biomanufacturing and downstream processes.

• Complex Media and Buffers: The high-capacity pre-filtration layer makes this capsule an excellent choice for clarifying and sterilizing viscous fluids, complex media blends, and high-titer cell culture supernatants.

• Process Scalability: The Supor EKV membrane provides highly consistent linear scale-up, allowing process engineers to transition smoothly from lab-scale capsules to large production-scale cartridges.

• Plug-and-Play Bioprocessing: The sanitary connections and gamma-sterilized format make it a perfect fit for immediate use in stringent, GMP-compliant single-use systems.
