Description
Product Information

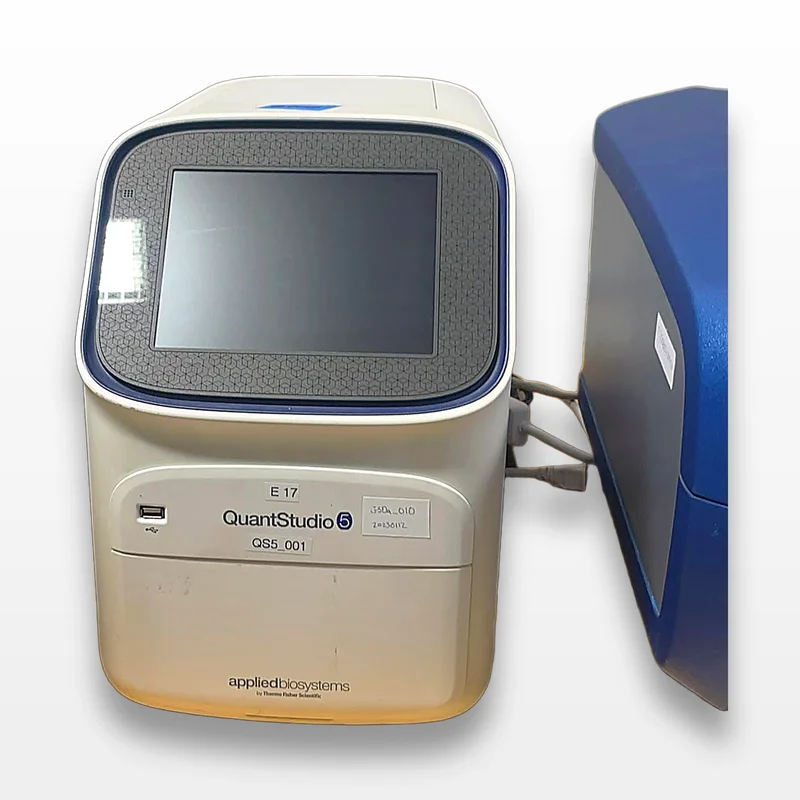

The Applied Biosystems QuantStudio 5 is a highly reliable qPCR system that supports various dye chemistries including FAM™, SYBR™, VIC™, and ROX™. The unit is in very good condition, displaying minimal cosmetic damage while maintaining full operational functionality. Designed for high-throughput applications, it features a 96-well capacity with a dynamic range capable of detecting as few as one copy of target DNA. The system is equipped with a bright white LED light source and can perform multiplex assays for up to six targets per run. The Peltier heating/cooling block provides superb temperature uniformity of 0.4°C across six independent zones, ensuring precise control. Manufacturer’s details confirm its dimensions as 27 x 50 x 40 cm (WxDxH) and weight of under 26 kg. Ideal for laboratories requiring robust qualitative and quantitative analysis of nucleic acids.
Key Features
- Compatible with various fluorescent dyes
- 96-well capacity for high-throughput
- Dynamic range of 10 logarithmic units
- Bright white LED light source
- Peltier heating/cooling method for precision
- Six independent temperature zones
Specifications
- Dye Compatibility: FAM™, SYBR™ Green, VIC™, JOE™, ABY™, NED™, ROX™, Mustang Purple™, Cy®5
- Multiplexing: 96-well, up to 6 targets
- Dynamic Range: 10 logarithmic units
- Sensitivity (Resolution): Detects 1.5-fold differences in a singleplex reaction
- Sensitivity (No. of Copies): 1 copy
- Excitation Source: Bright white LED (>5-year median lifespan)
- Dimensions: 27 x 50 x 40 cm (W x D x H)
- Sample Capacity: 96-well 0.2 mL block
- Reaction Volume: 10–100 μL
- Maximum Ramp Rate: 6.5°C/sec
- Average Sample Ramp Rate: 3.66°C/sec
- Temperature Uniformity: 0.4°C
- VeriFlex™ Blocks: 6 independent temperature zones
Weight
Imperial: 68.4 Pounds
Metric: 31.03 Kilograms
Shipping Dimensions
Imperial: 24.0 in x 13.2 in x 18.0 in
Metric: 60.96 cm x 33.53 cm x 45.72 cm
Harmonized Code
9027.80.4500
Harmonized Code Details
Harmonized code 9027.80.4500: Instruments and apparatus for measuring or checking variables of liquids or gases. Suitable for the Applied Biosystems QuantStudio 5 as it involves measurement and detection of DNA in research settings.
