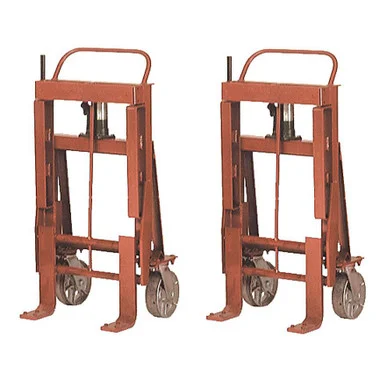

Rais-N-Rol 8,000 lb Capacity Per Pair.
- A 5 Year Guarantee Against Weld Failure. A Wesco® Quality Exclusive.
- Heavy duty capacities up to 5 tons – the most economical way to lift and move large bulky loads.
- Swivel casters allow movement in any direction.
- Hand operated hydraulic jack for easy lifting and controlled lowering of loads.
- All models supplied with hooks for recommended optional LB-1 or LB-2 load binders.
- 23″ wide x 16.5″ deep x 43.375″ high (lowered height.)
- I.D. fork span range 6″ to 19.5″.
| Model | RNR-8 |
| Capacity Per Pair | 8000 lb |
| Caster | (2) 8″ x 2.5″ Steel |
| Lift Height | 6″ |
| Inside Fork Span Range | 6″ to 19.5″ |
| Overall Width | 23″ |
| Overall Height | 41.375″ |
| Overall Depth | 20.75″ |
| Weight/PR | 390 lb |
Drawing for Rais-N-Rol™ Machinery Movers (260089)
Rais-N-Rol Operating Instructions and Parts Manual
