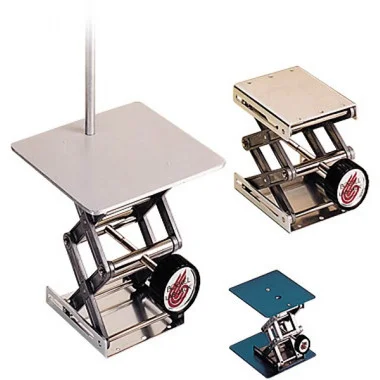

Lab Jack 6″ x 6″, 60lb load, Stainless Steel & Aluminum. All stainless steel screw mechanism with anodized aluminum top and bottom plates. Three sizes have a pre-tapped hole to accommodate an optional support rod. The Giant size, 19090-005B has a side locking knob for the platform.
Note: Lab Jack and Lab-Jacks are registered trademarks of Boekel Industries, Inc.
Specifications:
| Jack Model No. | Plate Dimensions | Max Load | Max Height | Min Height | Pre Tapped |
| Micro 19086-000 |
3″x3″ 7.62 cm x 7.62 cm |
10lb, (4.5 Kg) | 3.25″ 8.26 cm |
1″ 2.54 cm |
|
| Small 19090-002B |
4″x4″ 10.16 cm x 10.16 cm |
25lb, (11.3 Kg) | 5.5″ 14 cm |
1.65″ 4.2 cm |
|
| Standard 19089-001 |
4.75″x5.5″ 12 cm x 14 cm |
50lb, (22.7 kg) | 10.4″ 26.4 cm |
3″ 7.6 cm |
|
| Large 19090-003B |
6″x6″ 15.24 cm x 15.24 cm |
60lb, (27.2 Kg) | 10.75″ 27.3 cm |
2.45″ 6.2 cm |
X |
| Biggie 19090-004B |
8″x8″ 20.3 cm x 20.3 cm |
75lb, (34.0 Kg) | 11″ 28 cm |
2.25″ 5.7 cm |
X |
| Giant 19090-005B |
12″x12″ 30.5 cm x 30.5 cm |
100lb, (45.4 Kg) | 20″ 50.8 cm |
3.5″ 8.9 cm |
X |
