Description
Product Information

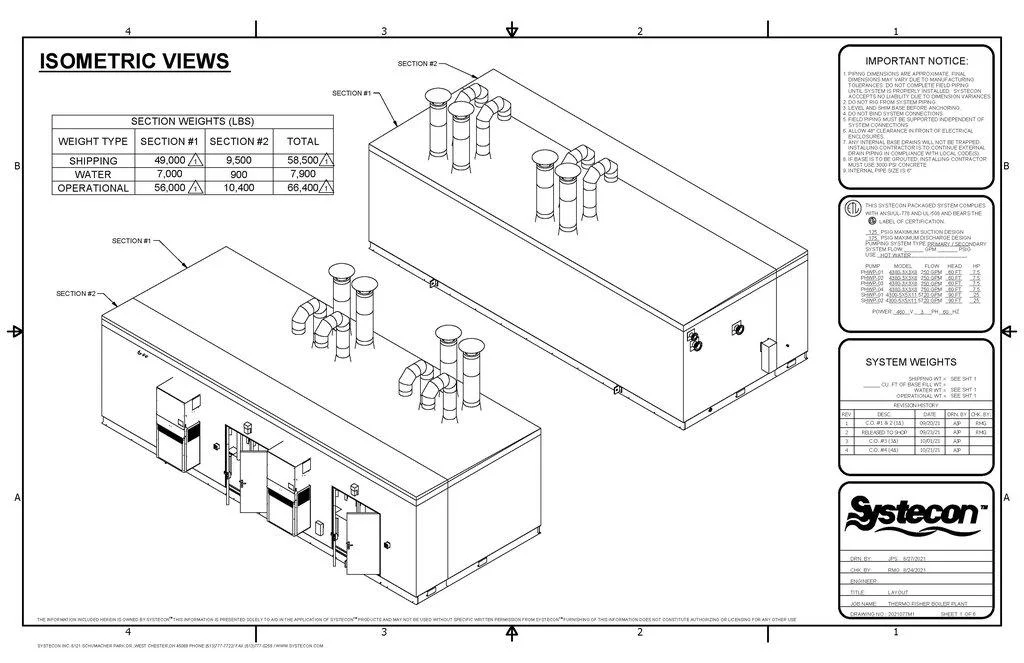

The Systecon Packaged Boiler Plant features a robust design with four gas-fired AERCO BMK5000 boilers, each delivering an impressive 5,000,000 BTU per hour, culminating in a total output of 20,000,000 BTU per hour. This turn-key outdoor solution is housed in an insulated Systecon enclosure and includes advanced controls with Allen-Bradley ControlLogix PLC and comprehensive BACnet/Modbus integration for seamless BAS connectivity. The plant incorporates VFD-driven primary and secondary pumping, ensuring high efficiency with a primary flow of 750 GPM and secondary flow of 720 GPM. The system is factory-built, complete with full documentation including FAT reports, and remains in its original packaging, ensuring minimal field assembly required. With dimensions approximately 40 ft in length, 15 ft 10 in in width, and 11 ft 1 in in height, this plant represents a sophisticated solution for integrated hot-water generation, suited for extensive industrial applications.
Technician comment
**Each Boiler delivers 5,000,000 BTU per hour** 20,000,000 BTU per hour total.
Key Features
- 20,000,000 BTU/hour maximum output
- Insulated outdoor enclosure
- Allen-Bradley ControlLogix redundant PLC controls
- BACnet/Modbus integration
- VFD-driven pumps for high efficiency
Specifications
- Boilers: 4 × AERCO BMK5000, 5,000,000 BTU each
- Total flow: Primary 750 GPM, Secondary 720 GPM
- Power requirement: Single feed 460V/3-phase/60Hz
- Base dimensions: 480″ × 190″ × 10″
- HMI: 10″ onboard display, NEMA 1 rated
Weight
Imperial: 30000.0 Pounds
Metric: 13607.76 Kilograms
Shipping Dimensions
Imperial: 1440.0 lb x 1200.0 lb x 120.0 lb
Metric: 3657.6 cm x 3048.0 cm x 304.8 cm
Harmonized Code
840219
Harmonized Code Details
Harmonized code 840219 pertains to other vapor generators, such as boilers. This product falls under that category as it involves a packaged boiler system utilizing vapor generation.
