Description
Product Information

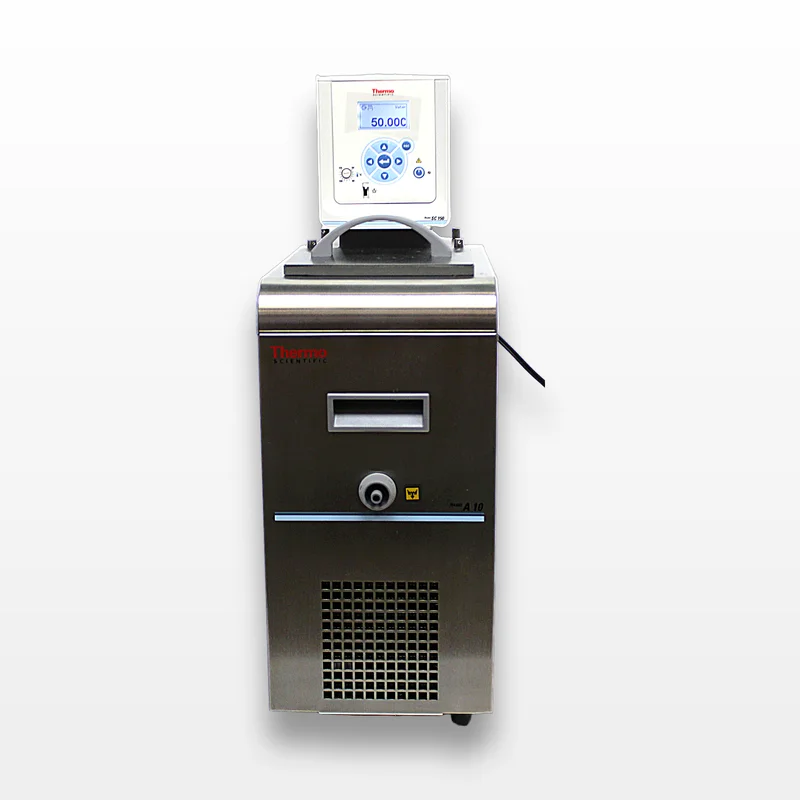

The Thermo ARCTIC A10B Refrigerated Circulators, exclusively made in the USA, offer powerful cooling solutions with a temperature range of -10C to +100C, making these ideal for a variety of laboratory applications. This unit is in a used but fully functional condition, with a stainless steel reservoir and a maximum bath volume of 6 liters. It features precise temperature control with a stability of 0.02C and a cooling capacity of 240W. Equipped with a force/suction pump delivering a flow rate of 17 L/min, and communicates through RS232, RS485, Ethernet/LAN, and Analog I/O. The unit meets CE, ROHS, and WEEE compliance standards, ensuring it adheres to safety and environmental guidelines. Note that this turnkey system does not include a computer or software, but comes ready to operate with a power cord included. The dimensions are 16.3 x 8.7 x 24.9 inches and it operates on 240V at 50Hz/60Hz, making it suited for a range of lab settings.
Key Features
- Temperature range: -10C to +100C
- 6-liter stainless steel reservoir
- Cooling capacity: 240W
- Temperature stability: 0.02C
- Flow rate: 17 L/min
- Force and suction pump
- Compliance: CE/ROHS/WEEE
Specifications
- Temperature Range: -10C to +100C
- Capacity: 6 L (1.58 gal)
- Cooling Capacity: 240 W
- Flow Rate: 17 L/min
- Pump Type: Force Pump, Suction Pump
- Max Pressure: 300 mbar/4.35 psi
- Temperature Stability: 0.02C
- Communications: RS232, RS485, Ethernet/LAN, Analog I/O
- Certifications/Compliance: CE, ROHS, WEEE
- Dimensions: 16.3 in x 8.7 in x 24.9 in (41.4 cm x 22 cm x 63.2 cm)
- Voltage: 240V
- Frequency: 50Hz/60Hz
Weight
Imperial: 89.95 Pounds
Metric: 40.8 Kilograms
Shipping Dimensions
Imperial: 27.4 lb x 16.06 lb x 36.85 lb
Metric: 69.6 cm x 40.79 cm x 93.6 cm
Harmonized Code
84198940
Harmonized Code Details
84198940 – Refrigerating or freezing equipment, other than household type, parts and accessories thereof. Selected this code as it aligns with the functionality and type of the refrigerated circulator described.
