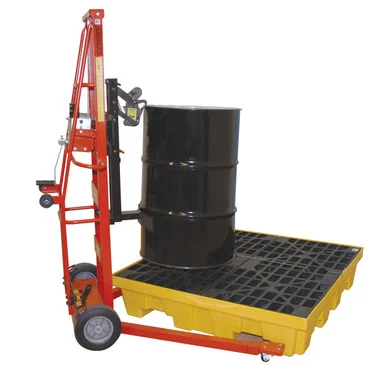

Triple Truck, TTF Base Unit with Optional Drum Handling Attachments
Please note that TTF-P (Platform Attachment) must be used with TTF-AF (Fork Attachment.) Make sure you’re ordering the fork attachment if you’re ordering the platform.
- Handles most standard rim 30, 55 and 85 gal. steel, poly and fiber drums with 261161 Gator Grip®.
- Manual winch with auto brake.
- Carriage lock, lock carriage in place at any position.
- Easy load rollers assist loading onto a truck bed.
- Low-profile 3″ debris deflecting neoprene swivel casters.
- 10″ x 2.75″ poly hub solid rubber wheels
- Wheel lock – pedal activated.
- Lever operated outrigger adjustment – 3 positions.
- Outrigger angle can be changed even under full load.
- Frame only – choose optional Gator Grip® drum grab, Fork Attachment or Fork Attachment with Platform Attachment
| Model Number | TTF |
| Capacity per Grip | 750 lb |
| Wheel Type | Z2 – 10″ x 2.75″ Poly Hub Solid Rubber |
| Wheel Model | 150698 |
| Swivel Caster | (2) 3″ |
| Overall Width | 30″ |
| Overall Height | 70.75″ |
| Overall Depth | 52.25″ |
| Weight | 357 lb |
Drawing and Spec Sheet
Gator Grip Drum Attachment Specs
| Model Number | TTF-GG |
| Capacity per Grip | 750 lb |
| Overall Width | 16″ |
| Overall Height | 33″ |
| Overall Depth | 12″ |
| Weight | 32 lb |
Fork Attachment Specs:
| Model Number | TTF-AF |
| Capacity per Grip | 750 lb |
| Lift Height | 62″ |
| Width Forks | 3″ |
| Length Forks | 26.75″ |
| Load Center | 16″ |
| Lowered Height | 4″ |
| Weight | 30 lbs |
Platform* for Fork Attachment Specs:
| Model Number | TTF-P |
| Capacity per Grip | 750 lb |
| Lift Height | 62.125″ |
| Platform Width | 21.25″ |
| Platform Length | 28.125″ |
| Load Center | 16″ |
| Lowered Height | 5″ |
| Weight | 6 lbs |
*Must be used with fork Attachment
